DP20 SERIES HIGH VOLTAGE DIFFERENTIAL PROBES

DP20 series measures voltages of up to 30 KV DC + Peak. They can be integrated into systems using the a 3-way mounting capability. The 50 ohms output impedance allows long cable runs far away from the testing equipment without affecting the measurement accuracy.

Highlights & Features:

Low Input Capacitance

120 MHz Bandwidth

Up To 20 KV RMS, 30 KV DC + Peak

Two Standard and Two Precision Models with up to 0.1% DC Accuracy

Unmatched Performance when Measuring High CM Slew Rate Signals

Digital Offset Adjustment

Low Noise

DP20 series models:

DP20-10K High Voltage Differential Probe, 1:10000, 17.5KVrms

DP20-20K High Voltage Differential Probe, 1:20000, 20KVrms

DP20-10K-LVC Precision High Voltage Differential Probe, 1:10000, 17.5KVrms

DP20-20K-LVC Precision High Voltage Differential Probe, 1:20000, 20KVrms

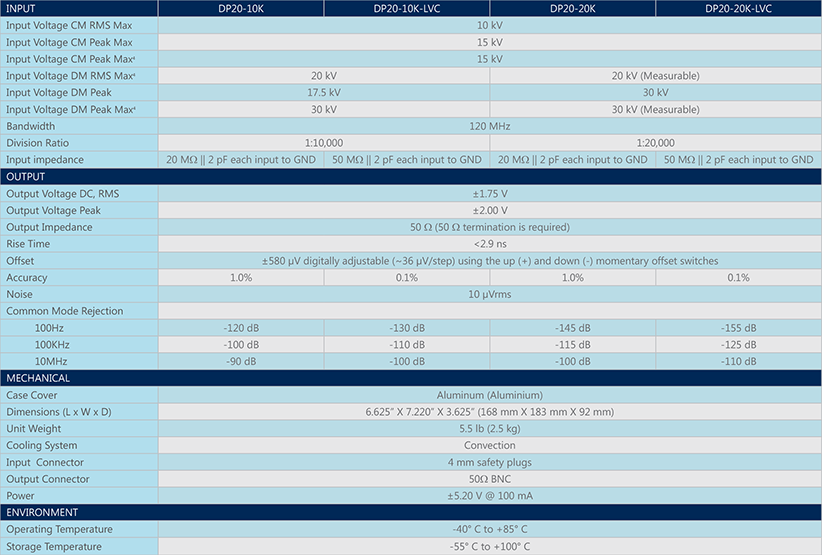

GENERAL SPECIFICATIONS AND CHARACTERISTICS

Notes

1) At 25°C ambient temperature horizontal mounting orientation.

2) All parameters are typical specified at 25°C ambient temperature unless otherwise indicated.

3) Information and specifications contained within this publication may change without notice.

4) Non-Measurable. Peak voltages can be applied for <5 s.

5) CM stands for Common Mode and DM for Differential Mode.
