DP03 SERIES HIGH VOLTAGE DIFFERENTIAL PROBES
DP03 series has a higher output voltage (+/- 7V in 50 Ohms) which allows a lower division ratio to be used for a given measurable output voltage. It will give a higher amplitude and resolution capability for the voltages in between 1.75KV - 7KV.
Highlights & Features:
- Low Input Capacitance
- 75 MHz Bandwidth
- Up To 8 KV RMS, 12 KV Peak
- Three Standard and Three Precision Models, up to 0.1% DC Accuracy
- Unmatched Performance when Measuring High CM Slew Rate Signals
- Digital Offset Adjustment
- 6V DC in 50 Ω Output Capability
DP03 series models:
- DP03-100-50 High Voltage Differential Probe, 1:100, 600Vrms
- DP03-1K-50 High Voltage Differential Probe, 1:1000, 6KVrms
- DP03-2K-50 High Voltage Differential Probe, 1:2000, 8KVrms
- DP03-100-LVC-50 Precision High Voltage Differential Probe, 1:100, 175Vrms
- DP03-1K-LVC-50 Precision High Voltage Differential Probe, 1:1000, 6KVrms
- DP03-2K-LVC-50 Precision High Voltage Differential Probe, 1:2000, 8Krms

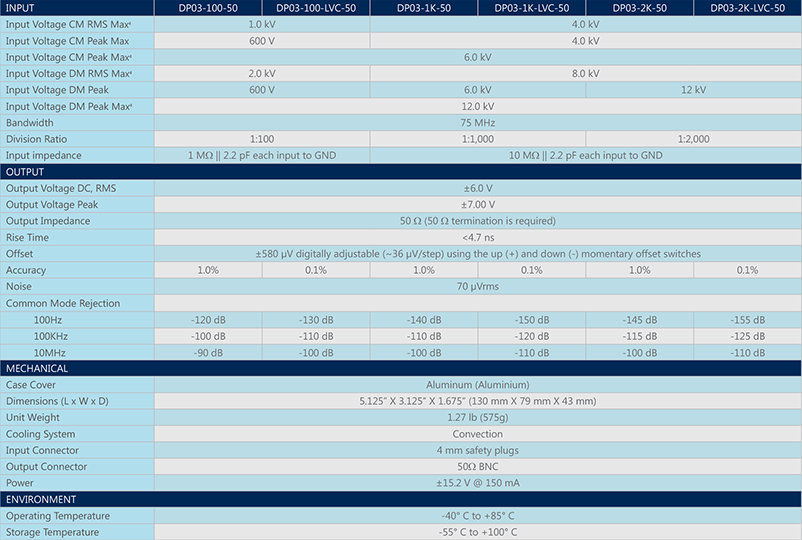

GENERAL SPECIFICATIONS AND CHARACTERISTICS
Notes
1) At 25°C ambient temperature horizontal mounting orientation.
2) All parameters are typical specified at 25°C ambient temperature unless otherwise indicated.
3) Information and specifications contained within this publication may change without notice.
4) Non-Measurable. Peak voltages can be applied for <5 s.
5) CM stands for Common Mode and DM for Differential Mode.
